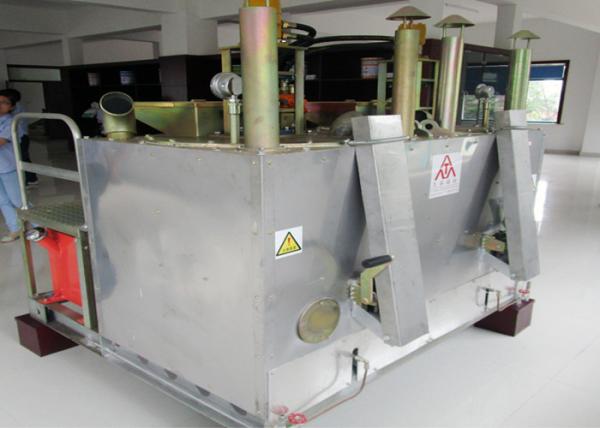

15HP Liquefied Gas Paint Heating Machine Double Boiler Preheater
with 900kg Capacity
PRODUCT DESCRIPTION
ATM-900
| Application:Heat and Melt Thermoplastic Road Marking Paint |
| Type:Double- melter |
| Engine:15HP Diesel Engine |
| Weight:1200kg |
| Dimension(L*W*H):1500*1700*1750mm |
| Material:Stainless Steel |
| Heat Method:Liquefied Gas |
| Tank Capacity:450kg*2 (Two Tanks) |
| Driving Method:Hydraulic Transmission |
Features: 1.High Power Engine
2.Save Cost of Heat
3.Great Heat Preservation
4.No Rust and Fade
5.Long Validity and Easy to Maintain |
|
|
|
|
DIFFERENT MODELS
ATM-650 ATM-900 ATM-1500
DETAILS

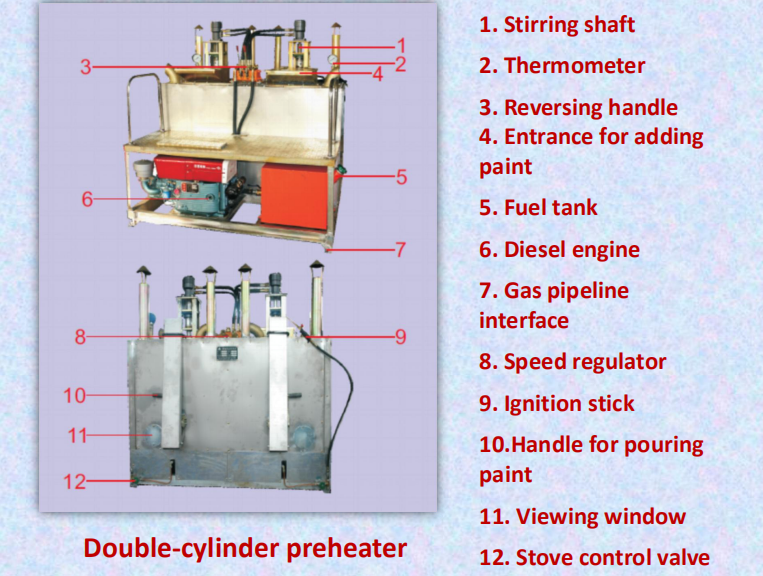

CONSTRUCTION
Operating procedures
1. Preparation
Check diesel engine oil, cooling water, diesel, etc. Connect the
industrial control valve with the gas pipe, and connect the
pressure reducing valve with the gas bottle at one end and with the
gas pipeline (7) at the other end, and then check the stove control
valve(12) (should be closed), then open the gas bottle valve, and
ignite the ignition rod (9). Open the viewing window (11), place
the ignition rod (9) in the viewing window to align the stove,
ignite the stove by opening the stove control valve (12).
2.Heating
When starting to melt the paint, heat it with a small fire and put
a small amount of paint, and start the diesel engine when it starts
to melt. After the speed of the diesel engine stabilizes, start the
agitator to operate the reversing valve handle (3) [turn clockwise
inward, stop in the middle, and counterclockwise outward]. At the
same time, continue to put new materials into the kettle, increase
the amount of fire and strengthen stirring, until the paint in the
kettle is completely melted, and the temperature reaches 180 ℃-200℃
can be placed in the construction equipment for marking
construction. Every day the construction materials should be
planned, and do not leave too much paint in the kettle at the end
of the construction. If there is more paint left, it should be
released, cooled and solidified and crushed, and it will be used
with the new paint in the next construction. But to avoid too much
repeated heating.
