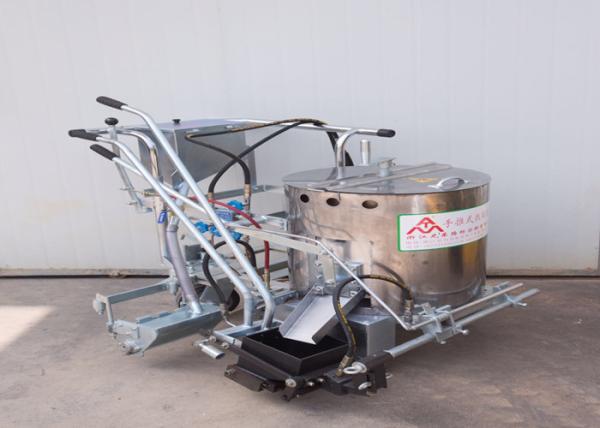

Hand Push Easy to Operate Thermoplastic Hot Melt Road Marking
Machine for Road Construction
PRODUCT DESCRIPTION
| Application:Marking Thermoplastic Paint Line |
| Type:Hand Push |
| Weight:115kg |
| Dimension(L*W*H):1100*850*950mm |
| Heat Method:Liquefied Gas |
| Paint/Glass Bead Tank Capacity:95kg/10kg |
| Marking Hopper Length:15cm/20cm/30cm (customers can choose one
size) |
| Marking Hopper Handle:Two |
| Glass Bead Dispenser:Controlled Manually |
Features:
1.Marking Hoppers are made of Special Alloy
2.Two Handles are designed for the Marking Hopper
3.Adjustable Handle and Carbide Toll help to work on uneven road
4.Special Rubber Wheels help to work more effectively and stably
5.Paint Tank of Double Layer Temperature Reservation Structure |
|
|
|
|
DETAILS
CONSTRUCTION
1. Pre-construction preparation
Put down the hopper (15) and place it where the line is to be
marked.
Loosen the positioning screw (20), align the pointer(24) with the
reference line, tighten the positioning screw (20), and then adjust
the arrow height adjustment screw (22) .
Put the gas bottle into the frame of the road marking machine, and
connect gas pressure reducing valve(6) to the gas bottle. After
igniting the ignition rod, align the spitfire head of the hopper
with the ignition head of the ignition rod (14), and then open the
ignition head valve (9)to ignite the hopper....
Pour the paint to the barrel, put glass bead to the glass bead tank
and open the glass bead valve(7) to let the glass bead flow into
the glass bead dispenser.
2. Road Marking
Align the pointer(24) of the machine with the reference line and
turn the rear wheel positioning lever (11) with your feet to
position the rear wheel. Lower the hopper (15)and press the handle
(3) to put the paint from the barrel through the channel (12) into
the hopper (15) . Then press the handle (5) . Open glass bead
switch handle (1).
3. End of Construction
Discharge the remaining material in the barrel and close all gas
valves.
Clean up the paint in the hopper.
COMPANY PROFILE
Founded in 2008, GZ LUHU TRAFFIC FACILITIES CO., LTD., whose
factory is located in Guangzhou City, Guangdong Province, is a
large-scale professional manufacturer specializing in the R&D,
sales and engineering installation of traffic facilities.
Main Business Scope: traffic facilities, traffic signs, lighting
equipment, metal products, plastic products research, processing,
manufacturing, sales, exports of goods and technology; construction
of traffic signs, benchmarking installation projects, installation
of parking facilities , traffic marking line project. Now there are
many line marking teams with rich experience. The annual marking
line construction volume reaches 1 million square meters.
Main Products: large-scale traffic safety signs and benchmarks,
gantry frames, municipal fences, road safety fences, small signs
for parking lots, marking paints, marking equipment, convex
mirrors, locators, corner guards, speed bumps, traffic cones,
traffic barriers, traffic lights and road studs, etc..
Since its establishment, GZ LUHU TRAFFIC FACILITIES CO., LTD. has
insisted in strict project management, the pursuit of excellence,
thus achieving 100% of engineering qualification and 100% of the
contract fulfillment, which has been widely recognized in the
industry. Besides, the company has successively participated in a
number of national and provincial key projects.
CERTIFICATE
CLIENTS
FAQ
What is payment term?
We accept Cash, TT, and Paypal.
How long will you prepare goods?
We have enough stock for most products and can arrange shipment
within 3 days upon receiving your payment. For customized goods, it
will take about 7 working days, subject to actual situation.
What kind of shipping method is provided?
We can provide EXW, FOB, CIF service, etc.. If part of your order
from other suppliers, you can let suppliers delivery goods to our
factory and we can load goods to the container in our factory, free
of charge.
